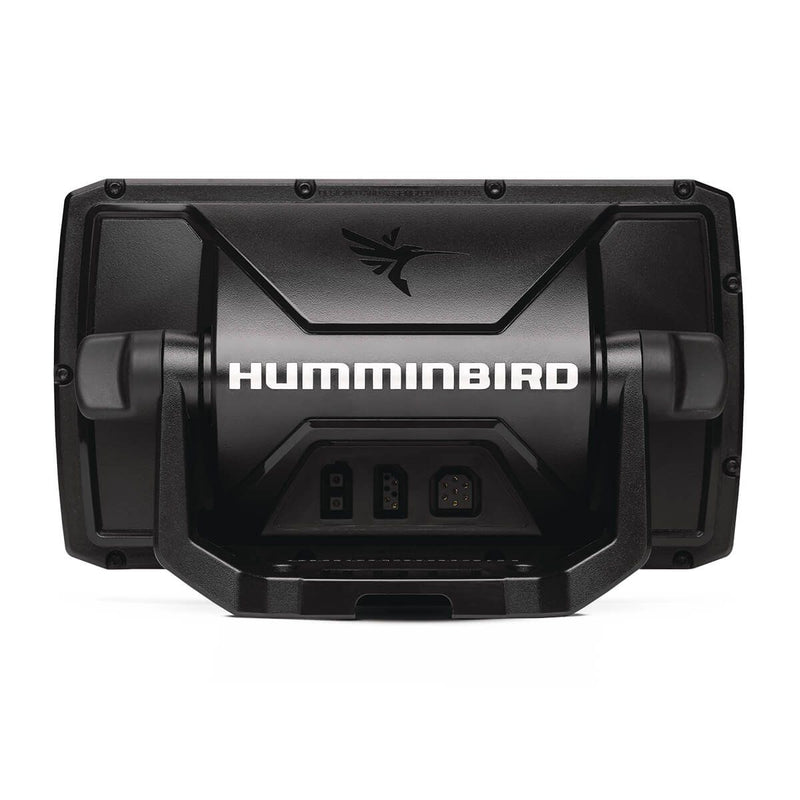

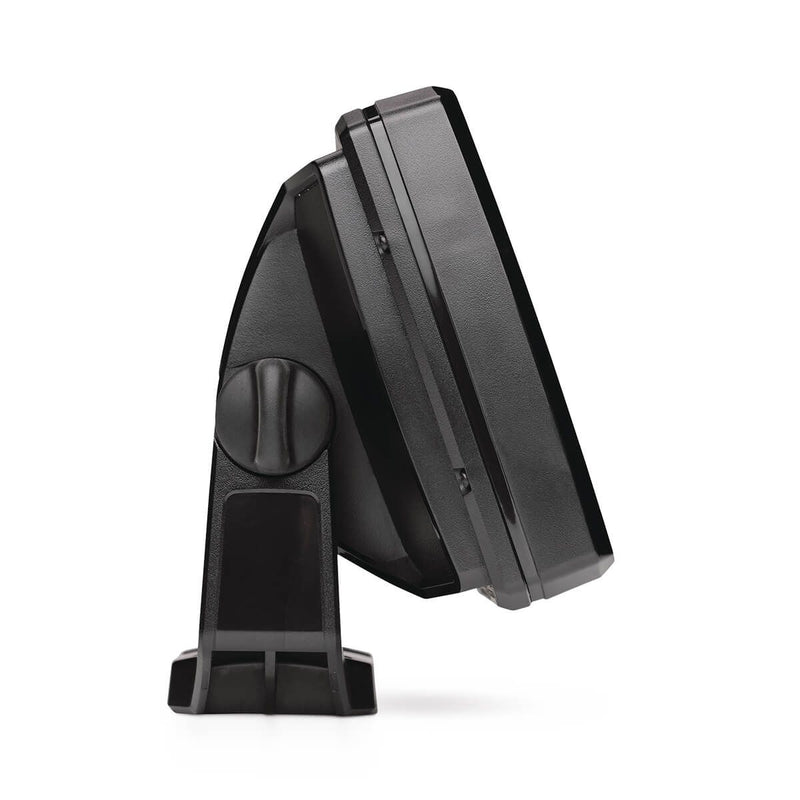

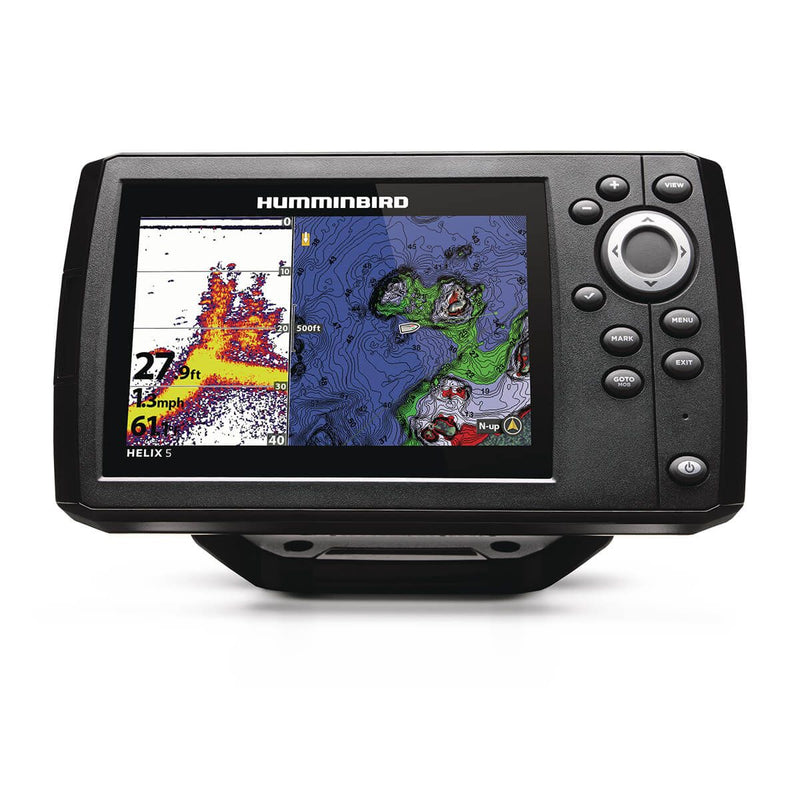

Humminbird HELIX5 CHIRP GPS G3 (411660-1)

Load image into Gallery viewer, Humminbird HELIX5 CHIRP GPS G3 (411660-1)

SKU: 4116601

Humminbird HELIX5 CHIRP GPS G3 (411660-1)

Name: Humminbird HELIX5 CHIRP GPS G3 (411660-1)
Brand: Hummingbird
SKU: 4116601
Price: 349.99 USD
Availability: OutOfStock

$349.99

Sale Sold out

Shipping calculated at checkout.

Quantity must be 1 or more

Notify me when back in stock

Overview

If fishing is in your DNA, there's no such thing as "too early" or "too far." The HELIX® 5 Series answers the call with an uncompromising 5" widescreen, color display. This HELIX 5 CHIRP GPS G3 model features Dual Spectrum CHIRP 2D sonar, internal GPS with Humminbird Basemap and AutoChart Live built-in, with additional compatibility for Humminbird and Navionics premium fishing charts.

FEATURES

Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.

Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.

Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.

AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.

Includes control head, transom-mount transducer, power cable, gimbal mounting bracket and mounting hardware.

1-Year Limited Warranty

WHY YOU'LL LOVE IT

Crystal-Clear Sonar Views

See structure, fish, and bottom detail with precision using built-in CHIRP and Dual Spectrum sonar—plus, select HELIX models offer MEGA Side and MEGA Down Imaging for even greater clarity and coverage.

Easy-to-Use Interface

Every HELIX model is built with a simple menu system and keypad control, so you can focus more on fishing, not fumbling with settings.

Bright, Sunlight-Readable Display

From small screens to the largest in the series, all HELIX units deliver clear, vibrant views in any light—so you never miss a detail.

Built for Open Water and Ice

From hardwater to open water, HELIX 7, 8, 9, 10 units can be adapt to each season making them a versatile choice for anglers year-round.

SPECS

Model	HELIX 5 CHIRP GPS G3
Product Code	411660-1
Series	HELIX
UPC	0082324056291

Display Size - Diagonal	5 in
Length	4.64 in \| 11.79 cm
Height	7.55 in \| 19.18 cm
Width	3.3 in \| 8.38 cm
Weight	2 lb 1.92 oz \| 961.62 g
Display Pixel Matrix	800H x 480V
Transducer Included	XNT 9 HW T
Compatible With	Minn Kota US2 Sonar, AIS, AutoPilot
Features	Built In GPS, Dual Spectrum CHIRP, Built In Mapping
Memory Card Slot	Single Micro SD
Sonar-Standard	Dual Spectrum CHIRP
Sonar-Coverage	20°, 42° & 60° @ -10dB
Sonar-Optional	50/83/200 kHz
CHIRP - Frequencies Supported	Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz), Optional (28-250 kHz)
Sonar-Frequencies Supported	50/80/200 kHz & HW DSC CHIRP
Depth-Sonar	3,000 ft (optional 50 kHz), 1,200 ft (standard transducer)
Interface	Keypad Control
Power Draw	615 mA
Power Input	10.8-20 VDC
Power Output Peak-to-Peak	4000 Watts
Power Output RMS	500 Watts
Screen Snap Shot	Included
Sonar Recording	Included
Mount-Standard	Gimbal
Mount-Standard Size	7.55 in W x 4.64 in H x 3.3 in D
Mount-Optional	In-Dash Mounting Kit
Mount-Optional Size	7.55 in W x 4.28 in H x 1.13 in D
Transducer Mount Location	Transom
GPS Chartplotting	Included
GPS Receiver	Internal
GPS Trackplotting	Included
Waypoints, Routes, Tracks/Points	2,750, 45, 50/20,000
360 Imaging Compatibility	No
MEGA Live Compatibility	No
Humminbird Basemap	Included
LakeMaster Compatibility	Yes
CoastMaster Compatibility	Yes
Navionics Gold/HotMaps Compatibility	Yes
Navionics Platinum+ Compatibility	Yes
Platinum Compatibility	Yes
Minn Kota i-Pilot Link Compatibility	No
Minn Kota Talon Shallow Water Anchor Compatibility	No
Radar Compatibility	No
5-Port Ethernet Switch Compatibility	No
AIS Compatibility	Not Supported
Autopilot Compatibility	No
Heading Sensor GPS Compatibility	No
NMEA2000	Not Supported
Target Separation	2.5 in
Noise Rejection	6 Steps
Upgradable Software	Yes
View Preset Keys	No
X-Press Menu System	Yes
Custom Digital Readout	Yes
Custom View Selections	No
Display Colors Grayscale	16-Bit
Display Type	Color TFT
Speed	Included
Temperature	Built In
Temperature Alarm	Yes
Temperature Graph	Yes
HDMI Compatible	No
Warranty	One-Year Warranty
